Welded Clevis Cylinder, 3" Bore
FAWC-300-100-150-8
Shipping Availability
Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.
Select a location to pick up to see availaility
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1131373

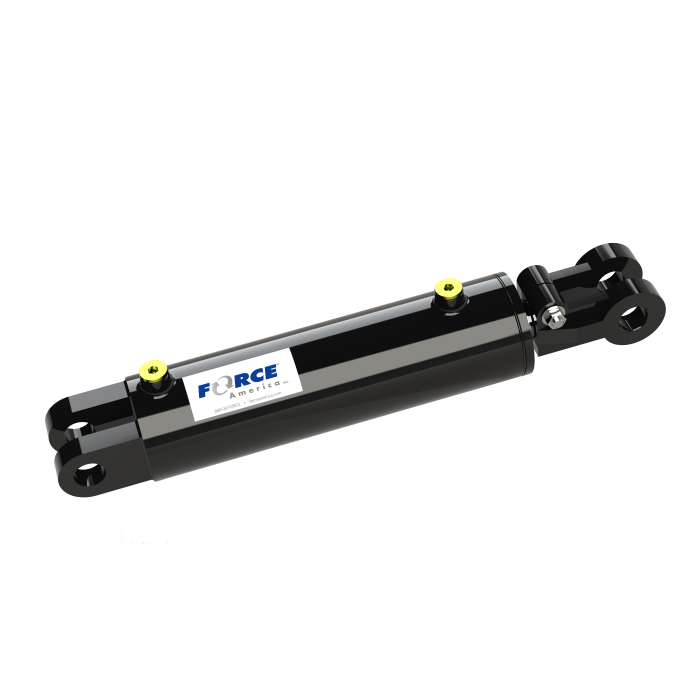

Welded Clevis Cylinder, 3 Inch Bore with a 10 inch stroke and 20.25 inch retracted length, overall extended length of 30.25 inches. Rated for 2,500 psi, this cylinder includes SAE -08 (1/2") ports and a 1.5 inch rod with a 1 inch clevis and clevis pin and is rated at a Full column load.
| Series | 3" Bore |
| Type | Welded |
| Part # | FAWC-300-100-150-8 |
| SKU | 1131373 |
| Length | 22.25 in |
| Width | 4.25 in |
| Height | 4.25 in |
| Weight | 35 lb |
| Bore | 3" |
| Stroke | 10" |
| Retracted | 20.25" |
| Extended | 30.25" |
| Mount | Clevis |
| Pin | 1" |
| Port Type Size | SAE -08 (1/2") |
| Rod | 1.5" |
| Pressure | 3,000 psi |
