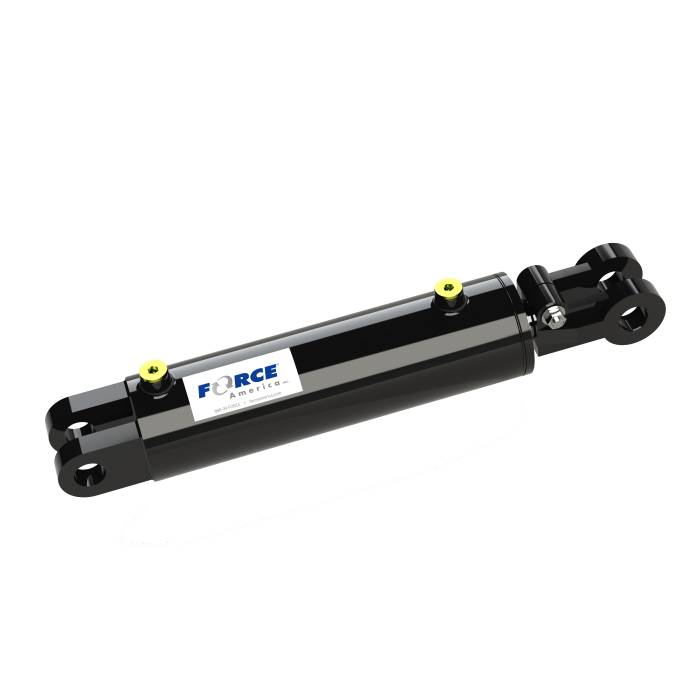

Welded Clevis Cylinder, 2" Bore
FAWC-200-160-112-8
Shipping Availability
Web Price
/ each
Please sign in to see your pricing, which may be different from the price displayed.
SKU
1131349
Welded Clevis Cylinder, 2 Inch Bore with a 16 inch stroke and 26.25 inch retracted length, overall extended length of 42.25 inches. Rated for 2,500 psi, this cylinder includes SAE -08 (1/2") ports and a 1.125 inch rod with a 1 inch clevis and clevis pin and is rated at a Full column load.
Series | 2" Bore |
Type | Welded |
Part # | FAWC-200-160-112-8 |
SKU | 1131349 |
Length | 28.25 in |
Width | 3 in |
Height | 2.75 in |
Weight | 30 lb |
Bore | 2" |
Stroke | 16" |
Retracted | 26.25" |
Extended | 42.25" |
Mount | Clevis |
Pin | 1" |
Port Type Size | SAE -08 (1/2") |
Rod | 1.125" |
Pressure | 3,000 psi |
