Tie Rod Cylinder, 3" Bore

FATC-300-140-125-8-CL

Shipping Availability

5

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
SKU
1131303
Tie Rod Cylinder, 3 Inch Bore with a 14 inch stroke and 24.25 inch retracted length, overall extended length of 38.25 inches. Rated for 2,500 psi, this cylinder includes SAE -08 (1/2") ports and a 1.25 inch rod with a 1 inch clevis and clevis pin and is rated at a Full column load.

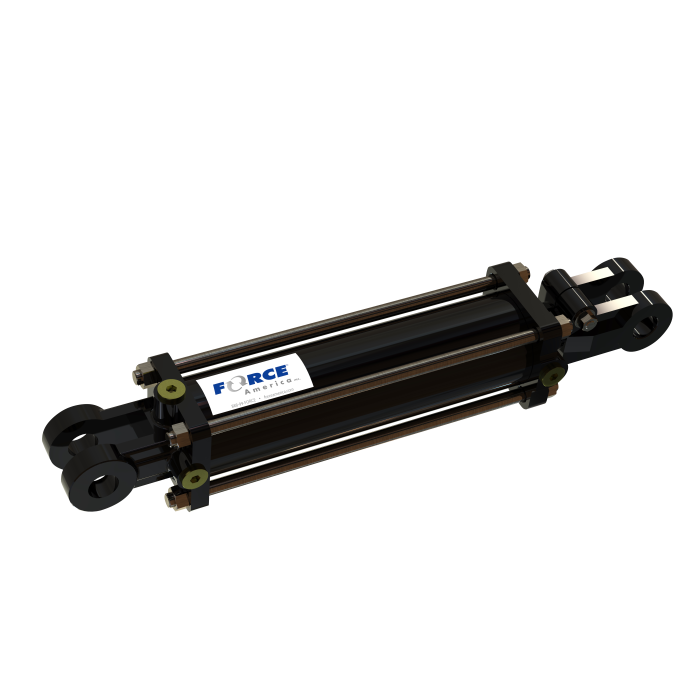

* Representative Image
Series 3" Bore
Type Tie Rod
Cluster FATC-300 Series
Part # FATC-300-140-125-8-CL
SKU 1131303
Length 26.25 in
Width 4.25 in
Height 4.25 in
Weight 35 lb
Bore 3"
Stroke 14"
Retracted 24.25"
Extended 38.25"
Mount Clevis
Pin 1"
Port Type Size SAE -08 (1/2")
Rod 1.25"
Pressure 2,500 psi
