Tie Rod Cylinder, 2.5" Bore

FATC-250-160-112-6-CL

Shipping Availability

5

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Price: $196.70 / each
Your Price: / each
SKU
1131291
Tie Rod Cylinder, 2-1/2 Inch Bore with a 16 inch stroke and 26.25 inch retracted length, overall extended length of 42.25 inches. Rated for 2,500 psi, this cylinder includes SAE -06 (3/8") ports and a 1.125 inch rod with a 1 inch clevis and clevis pin and is rated at a 11,050 lb column load.

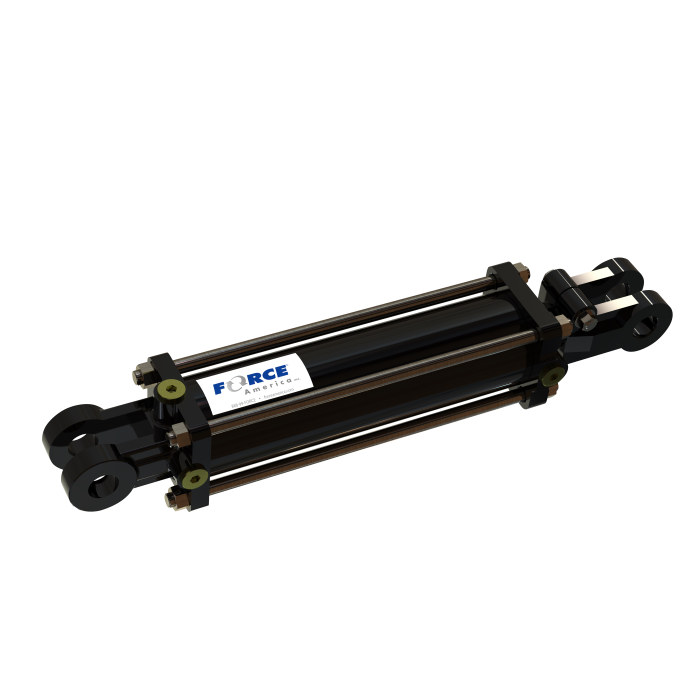

* Representative Image
Series 2.5" Bore
Type Tie Rod
Cluster FATC-250 Series
Part # FATC-250-160-112-6-CL
SKU 1131291
Length 28.25 in
Width 3.63 in
Height 3.38 in
Weight 32 lb
Bore 2.5"
Stroke 16"
Retracted 26.25"
Extended 42.25"
Mount Clevis
Pin 1"
Port Type Size SAE -06 (3/8")
Rod 1.125"
Pressure 2,500 psi
