Tie Rod Cylinder, 2.5" Bore


Shipping Availability


Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
Tie Rod Cylinder, 2-1/2 Inch Bore with a 14 inch stroke and 24.25 inch retracted length, overall extended length of 38.25 inches. Rated for 2,500 psi, this cylinder includes SAE -06 (3/8") ports and a 1.125 inch rod with a 1 inch clevis and clevis pin and is rated at a Full column load.

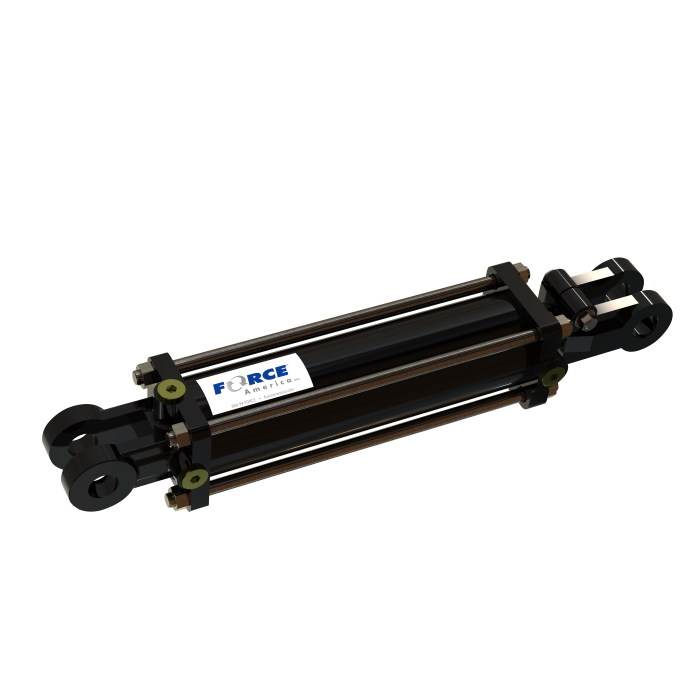

* Representative Image
Series 2.5" Bore
Type Tie Rod
Part # FATC-250-140-112-6-CL
SKU 1131290
Length 26.25 in
Width 3.63 in
Height 3.38 in
Weight 30 lb
Bore 2.5"
Stroke 14"
Retracted 24.25"
Extended 38.25"
Mount Clevis
Pin 1"
Port Type Size SAE -06 (3/8")
Rod 1.125"
Pressure 2,500 psi
