Tie Rod Cylinder, 2" Bore

FATC-200-360-112-6-CL

Shipping Availability

5

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Price: $239.10 / each
Your Price: / each
SKU
1131283
Tie Rod Cylinder, 2 Inch Bore with a 36 inch stroke and 46.25 inch retracted length, overall extended length of 82.25 inches. Rated for 2,500 psi, this cylinder includes SAE -06 (3/8") ports and a 1.125 inch rod with a 1 inch clevis and clevis pin and is rated at a 2,750 lb column load.

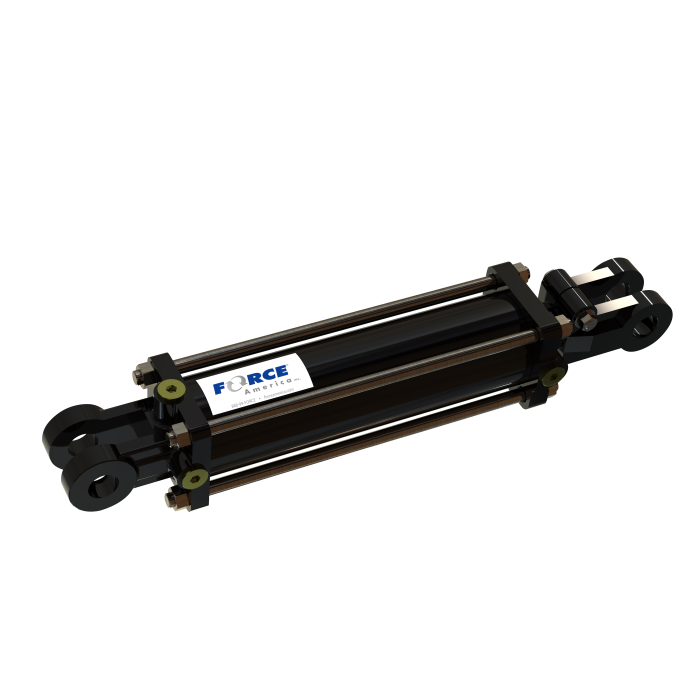

* Representative Image
Series 2" Bore
Type Tie Rod
Cluster FATC-200 Series
Part # FATC-200-360-112-6-CL
SKU 1131283
Length 48.25 in
Width 3 in
Height 2.75 in
Weight 45 lb
Bore 2"
Stroke 36"
Retracted 46.25"
Extended 82.25"
Mount Clevis
Pin 1"
Port Type Size SAE -06 (3/8")
Rod 1.125"
Pressure 2,500 psi
