Tie Rod Cylinder, 2" Bore

FATC-200-300-112-6-CL

Shipping Availability

Pick Up Availability
Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each

SKU

1131282

Tie Rod Cylinder, 2 Inch Bore with a 30 inch stroke and 40.25 inch retracted length, overall extended length of 70.25 inches. Rated for 2,500 psi, this cylinder includes SAE -06 (3/8") ports and a 1.125 inch rod with a 1 inch clevis and clevis pin and is rated at a 3,800 lb column load.

Contact Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

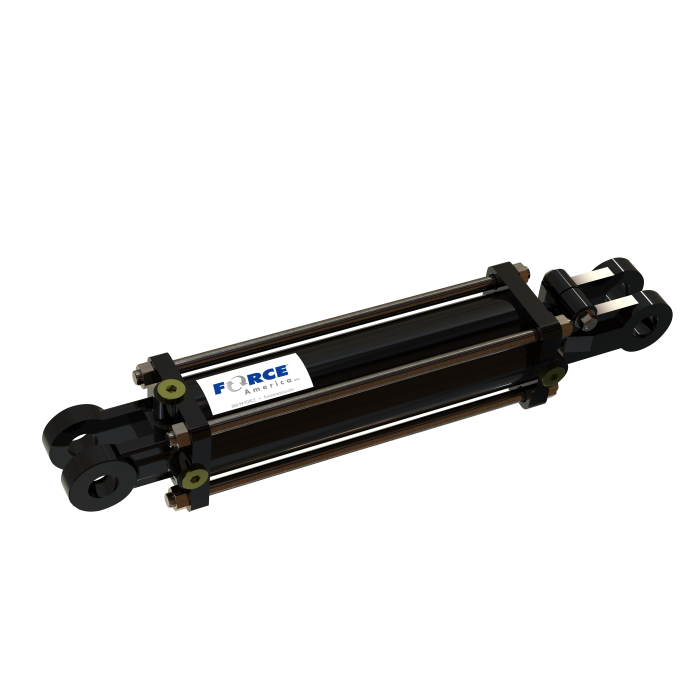

* Representative Image

Details

Series	2" Bore
Type	Tie Rod
Part #	FATC-200-300-112-6-CL
SKU	1131282
Length	42.25 in
Width	3 in
Height	2.75 in
Weight	40 lb
Bore	2"
Stroke	30"
Retracted	40.25"
Extended	70.25"
Mount	Clevis
Pin	1"
Port Type Size	SAE -06 (3/8")
Rod	1.125"
Pressure	2,500 psi
