Tie Rod Cylinder, 2" Bore


Shipping Availability


Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick-up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.

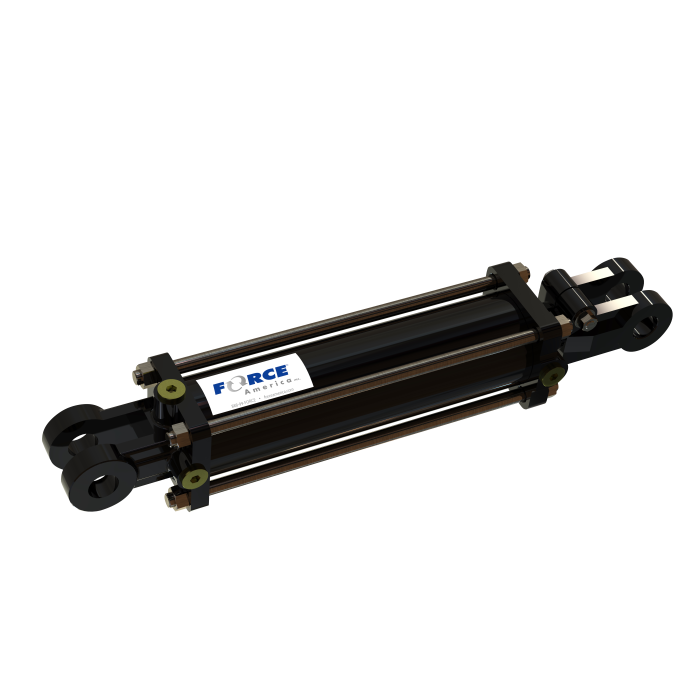

Tie Rod Cylinder, 2 Inch Bore with a 20 inch stroke and 30.25 inch retracted length, overall extended length of 50.25 inches. Rated for 2,500 psi, this cylinder includes SAE -06 (3/8") ports and a 1.125 inch rod with a 1 inch clevis and clevis pin and is rated at a 7,500 lb column load.
* Representative Image
Series 2" Bore
Type Tie Rod
Cluster FATC-200 Series
Part # FATC-200-200-112-6-CL
SKU 1131280
Length 32.25 in
Width 3 in
Height 2.75 in
Weight 30 lb
Bore 2"
Stroke 20"
Retracted 30.25"
Extended 50.25"
Mount Clevis
Pin 1"
Port Type Size SAE -06 (3/8")
Rod 1.125"
Pressure 2,500 psi
