Tie Rod Cylinder, 2" Bore

FATC-200-100-112-6-CL

Shipping Availability

5

Pick Up Availability Information tooltip icon

Choose your desired pick-up location here. Then, confirm your shipping method at checkout.

Select a location to pick up to see availaility

Web Price / each Information tooltip icon Please sign in to see your pricing, which may be different from the price displayed.
SKU
1131274
Tie Rod Cylinder, 2 Inch Bore with a 10 inch stroke and 20.25 inch retracted length, overall extended length of 30.25 inches. Rated for 2,500 psi, this cylinder includes SAE -06 (3/8") ports and a 1.125 inch rod with a 1 inch clevis and clevis pin and is rated at a Full column load.

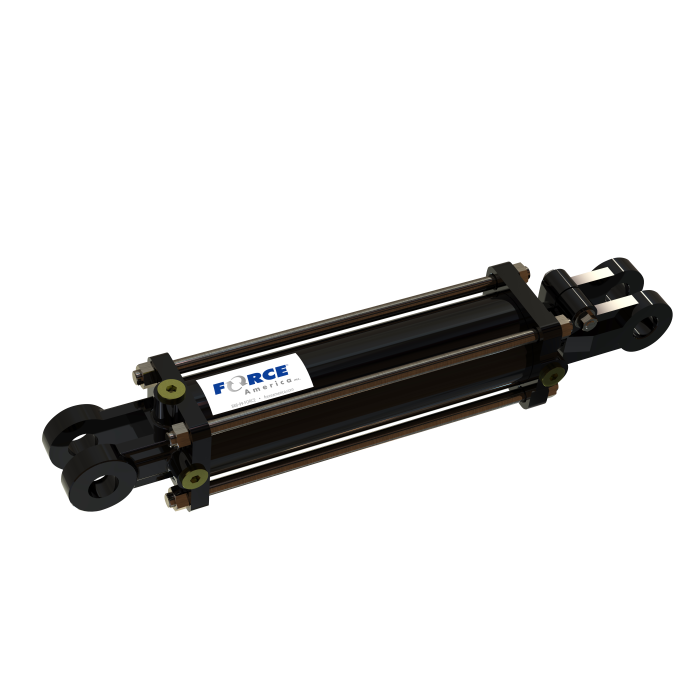

* Representative Image
Series 2" Bore
Type Tie Rod
Part # FATC-200-100-112-6-CL
SKU 1131274
Length 22.25 in
Width 3 in
Height 2.75 in
Weight 25 lb
Bore 2"
Stroke 10"
Retracted 20.25"
Extended 30.25"
Mount Clevis
Pin 1"
Port Type Size SAE -06 (3/8")
Rod 1.125"
Pressure 2,500 psi
