5100ex Spreader Control
Price: *Product only available via Quote Request
SKU
5100ex
Request a Quote
To receive more information or request a quote, select the button below and complete our form.

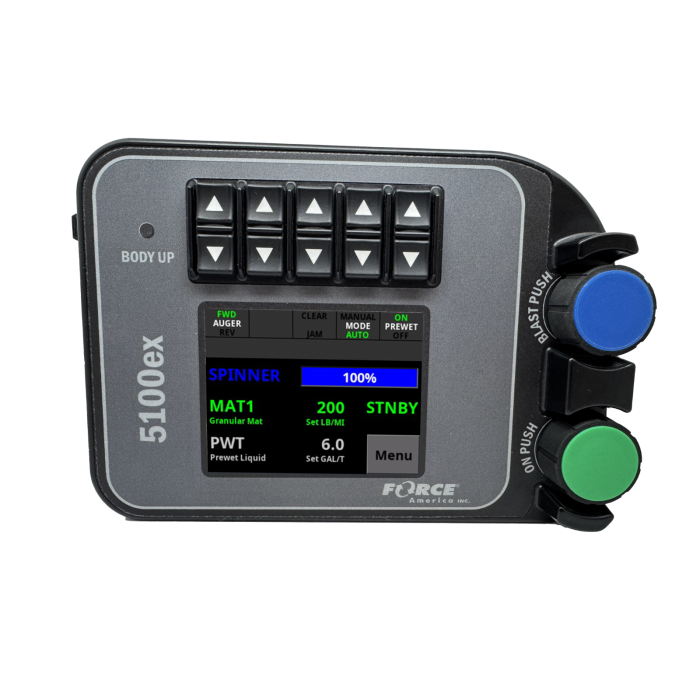

The 5100ex is a powerful spreader control delivering enormous functionality within a compact design. It is a commanding solution for winter maintenance professionals to spread material with precision and simplicity.
- Manual, open and closed loop controller capabilities
- Optional integrated control for the plow and hoist operation.
- Ergonomic, compact design for comfortable screen operation.
- Right-hand location of controls offer an unobstructed view of the LCD screen.
- Protective casing surround control knobs: prevents unintentional use and damage to the knobs.
- Bright, bold color LCD touchscreen: ideal for calibration and configuration options.
- Backlit rocker switches: provides easy viewing at all times.
- Interlock for use of crictical functions: avoid inadvertent operation of critical functions.
- Fully adjustable mounting options: allows for simple, customizable installation.
- Built-in USB port for data retrieval and firmware upgrades.
Hardware:
- Compact design at 5" H x 7.2" W x 2.3" D
- Screen Size: 3.5"
- Screen Resolution: 320 x 240px
- USB Connector: Standard-A Type
- Ergonomic deisgn for comfortable operation
- Fully adjustable mounting for easy, customizable installation
- Tactically placed interlock system to ensure safe use of critical functions
Software:
- Material Application Modes:
- Granular & Pre-Wet
- Direct (Slide in tank only)
- Two Position Gate
- Individually customizable material settings, including LBS/MI set rates and selectable number of set rates
- Real-time vehicle health monitoring and reponse systems
- Real-time material usage and GPS tracking with PreCise MRM website
- Firmware upgrades and Calibration Settings Import and Export through USB Flash Drive
Literature:
- Electrical Solutions Brochure
- 5100ex Product Brochure
- 5100ex Product Spec Sheet
- 5100ex Features Comparison and Change Log (Gen1)
- 5100ex Features Comparison and Change Log (Gen2)
Manuals:
- 5100ex Gen 1 Calibration Manual (Rev R)
- 5100ex Gen 1 Operation Manual (Rev Q)
- 5100ex Gen 2 Calibration Manual (Rev A)
- 5100ex Gen 2 Operation Manual (Rev A)
Installation Drawings:
- 4540 - Patrol Commander® Ultra, Opening Instructions
- 4521 - 5100ex Standard Installation
- 4315 - 5100ex Direct Liquid Installation
5100ex Firmware:
