Patrol Commander® Dual
Price: *Product only available via Quote Request
SKU
Patrol Commander Dual
Request a Quote
To receive more information or request a quote, select the button below and complete our form.

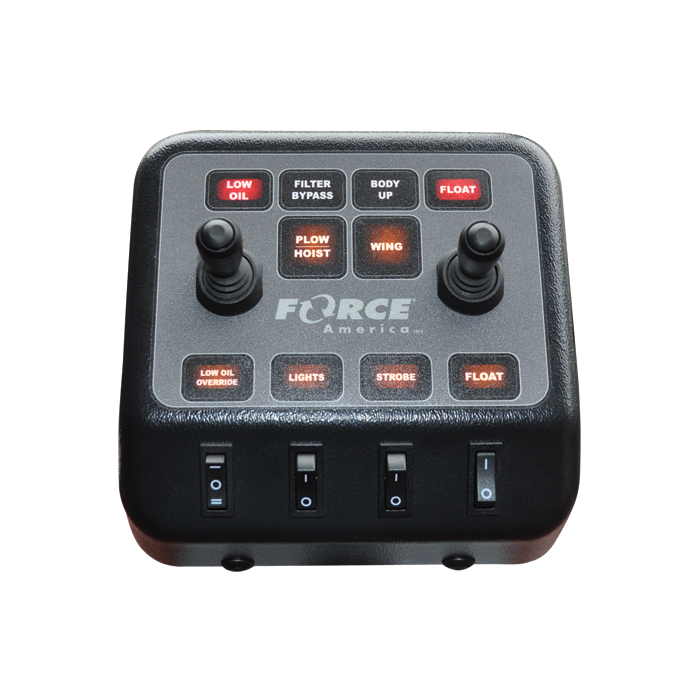

The Patrol Commander® Dual joystick allows for effective remote control on trucks of all sizes. This joystick controller will take your fleet’s plow control to new destinations with its solid, ergonomic design and intuitive navigation.
Technical Specifications:
- Size: 3.5” H x 8.0” W x 8.0” D
- Case Material: Vacuum-formed ABS
- Operating Voltage: 10-30 VDC
- Operating Current: 1A + valve drive current
- Total System Current: 10A
- Max Valve Output Current: 4A
- Electrical Protection: Fuse (10A), Reverse polarity protection
Hardware:
- Supports up to 2 joysticks
- Supports up to 4 warning lights
- Supports 1 single-acting, dual-acting, or power float.
- Side mounting option for optional SSC3100 or 5100ex Spreader Control
- Built-in LED backlight decals for night or low light operation
